Cylinder Shape Tungsten Carbide Rotary Burrs With Radius End Round Head Cut For Wood Metal Steel
Product Details:
| Place of Origin: | SICHUAN CHINA |
| Brand Name: | Xinsheng |
| Model Number: | CYLINDER SHAPE WITH RADIUS END |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 PIECES |
|---|---|
| Price: | $1-10/PIECE |
| Packaging Details: | Standard export cartons |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 200000 PIECES PER MONTH |
|
Detail Information |
|||
| Grade: | YG6/YG7/YG8/YG10 | Hardness: | HRC50-60/HRA92.5 |
|---|---|---|---|
| Material: | TUNGSTEN CARBIDE BURRS | Type: | CUTTING TOOLS |
| Cut Type: | SINGLE/DOULE/ALUM CUT | LOGO: | AS PER CUSTOMER REQUIREMENTS |
| Highlight: | Tungsten Carbide Rotary Burrs, Carbide Rotary File, Wood Metal Steel Polish Carbide Burrs | ||
| Highlight: | cylinder shape tungsten carbide rotary burrs,wood tungsten carbide burr bits,wood tungsten carbide rotary burrs |
||
Product Description

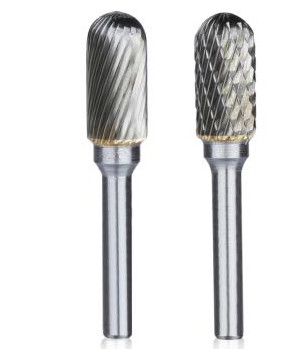

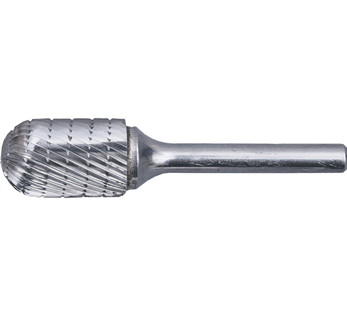

CYLINDER SHAPE WITH RADIUS END ROUND HEAD CUT FOR WOOD METAL STEEL POLISH CARBIDE BURRS
Shank Sizes
3.0mm(1/8") Shank Diameter: Applicable to carbide burr cutting head diameter range 1.0-6.0mm.
6.0mm(1/4") Shank Diameter: Applicable to carbide burr cutting head diameter range 6.0-25.0mm.
8.0mm(5/16") Shank Diameter: Applicable to carbide burr cutting head diameter range 12.0-25.0mm.
10.0mm(3/8") Shank Diameter: Applicable to carbide burr cutting head diameter range 16.0-25.0mm.
Cut Types:
Single-cut burs:are for general purpose work and provide good material removal.
Double-cut burs:produce smaller chips for greater operator control on applications such as stainless steels and ferrous materials.
Aluma-cut burs:have a wide flute design for easy stock removal without loading on applications such as nonferrous and soft materials.
Standard-cut burs:are widely uesed and leave a fine finish.
All Shapes (A–N):
SA Cylindrical Shape
SB Cylindrical with End Cut
SC Cylindrical Ball Nose
SD Ball Shape
SE Oval Shape
SF Tree Shape
SG Point Tree Shape
SH Flame Shape
SJ 60-degree countersink
SK 90-degree countersink
SL Ball Nosed Cone Shape
SM Cone Shape
SN Inverted Cone Shape
Technical Excellence:
- ISO-Certified Manufacturing: Precision-ground for perfect balance and concentricity.
- Advanced Heat Resistance: Sustains high RPM operations without performance loss.
- Reduced Vibration & Noise: Ergonomically designed for operator comfort and safety.
pplications Across Industries:
- Metalworking: Porting engine heads, weld cleaning, die correction.
- Wood & Stone: Sculpting, engraving, and detailing.
- Aerospace & Automotive: High-precision mold cavity machining.
- Jewelry & Art: Intricate designs on soft metals and composites.
Customization Service:
- Standard Kits: Pre-configured sets with popular shapes and cuts.
- Build Your Own Kit: Select shapes, coatings, cases, and laser-marked IDs.
- OEM Support: Extended shanks, special geometries, and anti-corrosion coatings available.
Maximize Tool Performance
- Safety First: Always wear PPE (goggles, gloves) and secure the burr tightly in the collet.
- Optimal RPM: Use higher speeds for cost-efficiency; reduce RPM for extended shanks.
- Light Pressure: Let the burr’s cutting edges do the work—avoid overheating.
