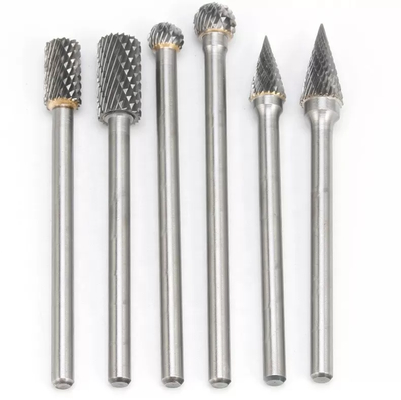

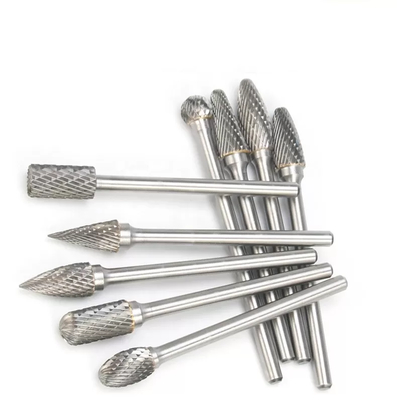

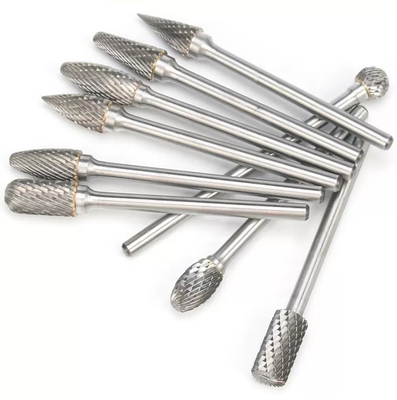

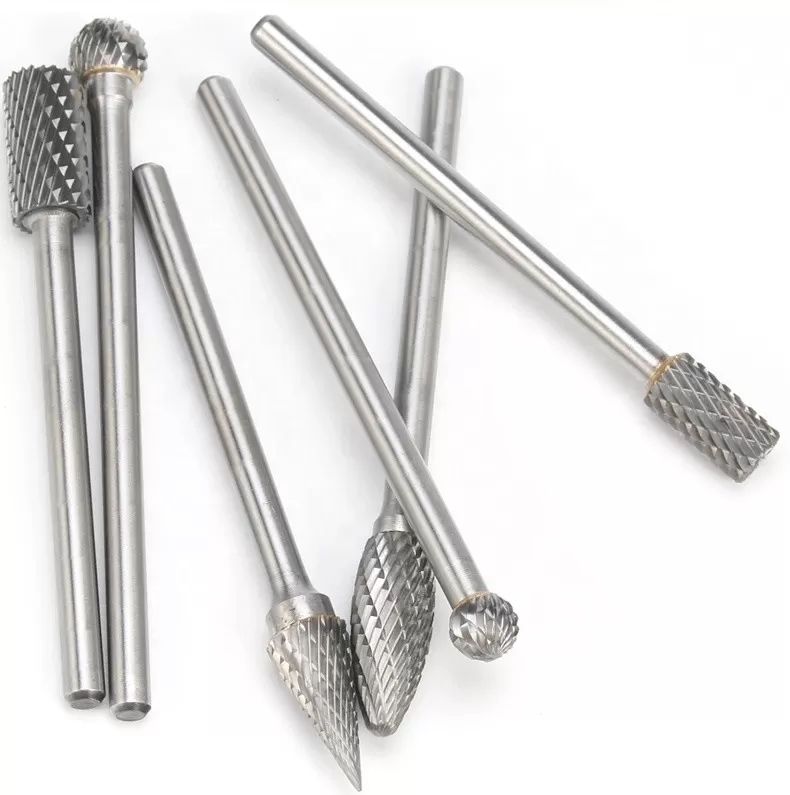

Standard Double Cut Long Shank Carbide Burr Impact Toughness 3mm 6mm 8mm Shank Diamter
Product Details:
| Place of Origin: | Sichuan, China |
| Brand Name: | Xinsheng |
| Model Number: | OTHER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10-200USD |
|---|---|
| Price: | $1.00 - $6.00 / Pieces |
| Packaging Details: | Plastic box in Standard export carton |
| Delivery Time: | 15Working Days |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 250000 Piece/Pieces per Month |
|
Detail Information |
|||
| Name: | Tungsten Carbide Rotary Files | Material: | Tungsten Carbide |
|---|---|---|---|
| LOGO: | Customized | Business Type:: | Manufacture & Trade Integration |
| VHighlight: | Long Shank Die Grinder Bits, Extended Length Carbide Burrs | ||
| Highlight: | double cut long shank carbide burr,long shank carbide burr impact toughness,standard long carbide burr |
||
Product Description
| Product name : | Tungsten Carbide Rotary Files | shank diamter : | 3mm/6mm/8mm |
| Brand : | Xinsheng | Packing : | set packing |
| shank hardness : | HRA 89-92.5 | speed of tool : | 15000-45000Turn/min |
| Material : | Tungsten Carbide | Certificate : | ISO9001:2008 |
Material: 100% of raw materials
Tolerance: strict tolerance extent control, which can reach +/-0.01mm;
Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.
Types: standard, conical, parabolic,ballistic
Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.
| Name | Type | Cut | Material | Product Process | Head Hardness | LOGO |
| Cylindrical | A | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Cylindrical End Cut | B | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Cylindrical Radius End | C | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| BALL SHAPE | D | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Oval | E | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Tree Shape | F | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Tree Pointed Ends | G | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Flame | H | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| 60°Cone | J | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| 90°Cone | K | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Taper Radius End | L | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Cone | M | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
| Inverted Cone | N | Standard/Single/Double/aluma | YG6/YG8/YG10X/YG20C | CNC | 89-92.5HRA | Customized |
Tungsten carbide burr is used widely in the shipping construction, auto engine porting and foundry fabrication. With its high rotating speed and hardness, it can machine a lot of different materials like cast iron, carbon steel, alloy steel and non ferrous material. High life service of product is warranted for virgin and excellent raw material which is one of most critical factors to the tools' life.
1.Could you please send me your catalog with price list?
A:Yes, catalog is OK, but kindly tell US the item NO. you like, will send quotation list asap.
2.May Iorder small quantity of carbide products?
A:Different models have different MOQ.You'd better contact US to confirm.
3.Can you provide sample?
A:Yes, please feel free to tell US the item NO. You prefer,also your own design is welcome to make sample for you.
4.When can you send me the carbide products afthe payment?
A:Around 30 days.
5.What is your price term, payment term and delivery terms?
A:Price Terms:By FOB Guangzhou.balance paid before shipent.
Payment Terms: T/T in advance.
Delivery Terms: BY express,by air, by shipment or as per requirement.
6.What is your guarantee?
A:Before shipent our products will pass strict inspection, If any problem be found, detail photos need to be provide 20 days after
receving goods. After our confirmation, compensation will be offered accordingly.
