High Hardness Cone Carbide Burr Die Grinder Bits OEM Service
Product Details:
| Place of Origin: | Sichuan, China |
| Brand Name: | Xinsheng |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | $1-$10/Piece |
| Packaging Details: | Plastic Case |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Material: | Tungsten Carbide | Sample: | Supplied |
|---|---|---|---|
| Size: | 3-25mm | Type Of Cut: | Single Cut/Double Cut/Diamond Cut |
| Highlight: | Carbide Carving Burrs, High Speed Carving Burrs | ||
| Highlight: | die grinder bits oem,oem cone carbide burr,25mm die grinder bits |
||
Product Description

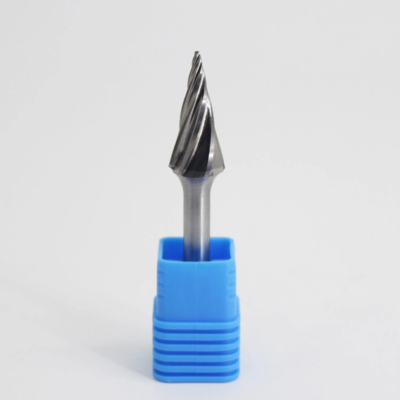

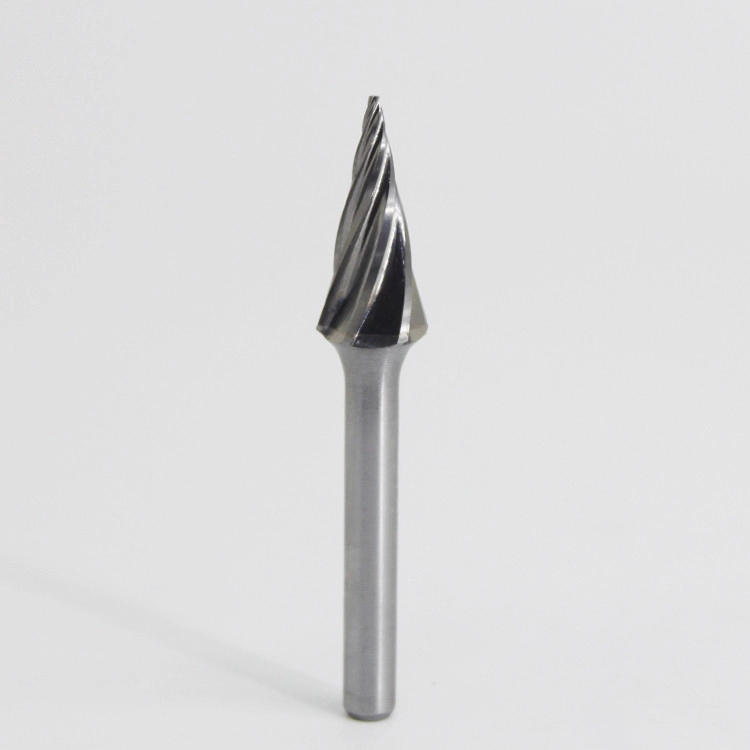

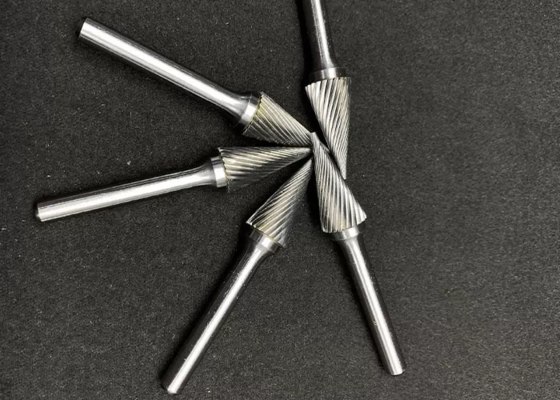

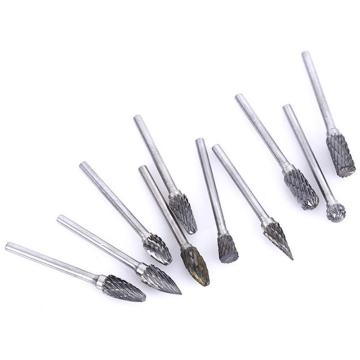

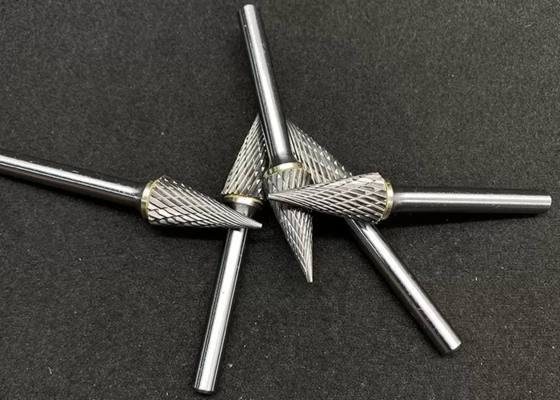

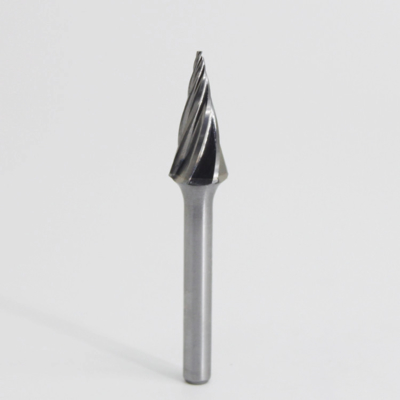

High Hardness Cone Carbide Burr Long Shank Die Grinder Bits OEM Service
Size
Tungsten carbide burrs come in a variety of sizes to suit different applications. Choosing the right size will depend on the job at hand. Generally smaller burrs are used on smaller applications for producing finer, smoother work. Larger burrs are for higher, faster stock removal and are more often used on larger jobs.
| Size No. | Burr size | RPM |
| No.42 | 2.4mm | 17,000-26,000 |
| No.43 | 3.0mm | 17,000-26,000 |
| No.1 | 6.0mm | 11,000-16,500 |
| No.5 | 13.0mm | 8,000-12,000 |
| No.6 | 16mm | 7,650-11,500 |
Speed
The rotary tool speed you use will depend on the metal and size/type of burr used. For optimum performance and results it is always best to check the manufacturer recommendations for the correct RPM to use with each metal burr. Ideally you will start off at a lower speed and increase as you go along, however if you find your burr is chipping it is a sign you are going too slow. Here is a general rotary tool speed guide
Technique
For the best results, and to make your burr last longer, make sure you don't use too much pressure while cutting. Too much pressure will cause the cutting edges of the flutes to chip and become smooth prematurely, reducing the life of your burr .
You will also want to ensure you keep the burr moving around the cutting area as much as possible. If the metal burr is left still for too long this can cause clogging and stop it from digging and jabbing into the job, leaving a rough job with visible marks.
