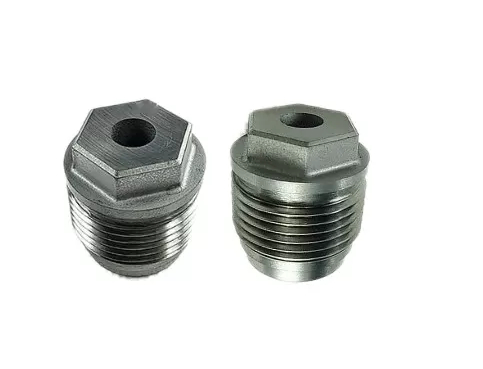

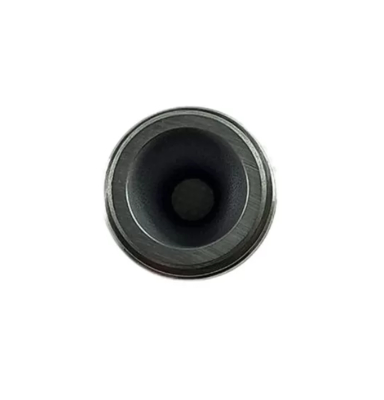

High Efficiency Drill Bit Nozzle With Cemented Carbide Material Wear Resistant
Product Details:
| Place of Origin: | SICHUAN CHINA |
| Brand Name: | Xinsheng |
| Model Number: | NZS65-9# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pcs |
|---|---|
| Price: | 10-50USD |
| Packaging Details: | Packed In Paper Box |
| Delivery Time: | 35 Working Days |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 10000 Pcs Per Month |
|
Detail Information |
|||
| Material: | Tungsten Carbide | Type: | Machining Services |
|---|---|---|---|
| Size: | OEM Accepted | Product Name: | Drill Bit Nozzle |
| Highlight: | Cemented Carbide Drill Bit Nozzle, High Efficiency Drill Bit Nozzle, Wear Resistant Drill Bit Nozzle | ||
| Highlight: | cemented tungsten nozzle,cemented drill bit nozzle,wear resistant tungsten nozzle |
||
Product Description
| Grade | ISO Grade | Chemical Composition | Physical Properties | Applications | |||||||
| WC% | CO% | Density g/cm3(±0.1) | Hardness HRA(±0.5) | TRS Mpa(min) | Grain Size(μ m) | ||||||
| YG6 | K20 | 94 | 6 | 14.85-15.00 | 90.5-92 | 1800 | 1.2-1.6 | Carbide burr. | |||
| YG6X | K15 | 94 | 6 | 14.80-15.00 | 91.7-93 | 1600 | ＜1.0 | High wear resistance and higher, strength. Machining of chilled alloy cast irons and refractory alloy steel or finishing of common cast irons. | |||
| YG8 | K30 | 92 | 8 | 14.62-14.82 | 89.5-91 | 1900 | 1.2-1.6 | Wire drawing die and non-standard structure and mechanical component and valve ball. | |||
| YG9 | K40 | 91 | 9 | 14.40-14.60 | 89-90 | 1850 | 1.2-1.6 | Flow sleeves, bushings, rings. | |||
| YG9C | K40 | 91 | 9 | 14.50-14.90 | 87.5-89 | 1815 | 1.2-1.6 | Nozzles, for the petroleum. | |||
| YG11 | K40 | 89 | 11 | 14.35 | 89 | 3200 | 1.6-2.0 | Nozzle, buttons, hemisphere, drilling teeth for the petroleum industry. | |||
| YG11C | - | 89 | 11 | 14.20-14.40 | 87.5-89 | 2200 | 1.6-2.4 | Inserts for mining and high-pressure nozzles in the petroleum, chemical, and mechanic industries. | |||
| YG13 | - | 87 | 13 | 14.10-14.30 | 87.5-89 | 2500 | 1.6-2.0 | Sleeves and bushings. | |||
| YG13C | - | 87 | 13 | 14.05-14.25 | 85.8-87.3 | 2550 | 2.4-4.0 | Alloy teeth and brazing bits. | |||
Product Features
Cost-effectiveness: Our carbide nozzles offer clients cost-effective solutions. This makes our products attractive to businesses that need to maximize their budgets.
Versatility: Our carbide nozzles are designed to be used in a variety of applications, owing to their superior performance and durability.
Corrosion Resistance: Our carbide nozzles are resistant to corrosion and can withstand harsh environmental conditions.
Low Maintenance: Our carbide nozzles require minimal maintenance, allowing for improved operational efficiency.
FAQ
1. Q: Are you a trading company or manufacturer?
A: We are a manufacturer.
2. Q: Do you offer customized products?
A: Yes, we offer customized products to fit the client's demands.
3. Q: Is the price competitive?
A: Yes, we offer reliable products at good prices.
4. Q: Are the products high quality?
A: Yes. The raw material will be tested before bulk production, and we will check the physical properties, shape, and tolerance for ensuring qualified products before shipping.
