Oil Drilling High Hardness Tungsten Carbide Waterjet Nozzle OEM
Product Details:
| Place of Origin: | SICHUAN CHINA |
| Brand Name: | Xinsheng |
| Model Number: | NS18-7.9(15#) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pcs |
|---|---|
| Price: | 10-50USD |
| Packaging Details: | Packed In Paper Box |
| Delivery Time: | 35 Working Days |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 10000 Pcs Per Month |
|
Detail Information |
|||
| Material: | 100% Virgin Tungsten Carbide | Size: | OEM Accepted |
|---|---|---|---|
| Application: | Oil Drilling | Properties: | High Hardness |
| Dimenstion: | Customization Acceptable | Highlight: | Tungsten Carbide Waterjet Nozzle, Oil Drilling Carbide Waterjet Nozzle, Cemented Carbide Drill Bit Nozzle |
| Highlight: | Tungsten Carbide Waterjet Nozzle,High Hardness Waterjet Nozzle,Oil Drilling tungsten nozzle |
||
Product Description

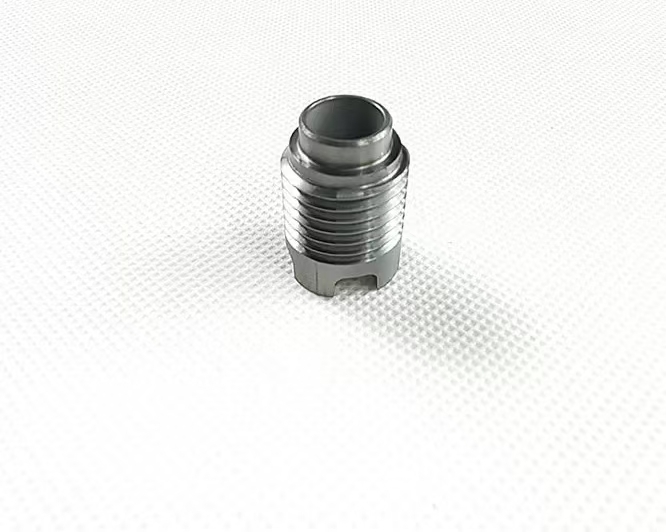

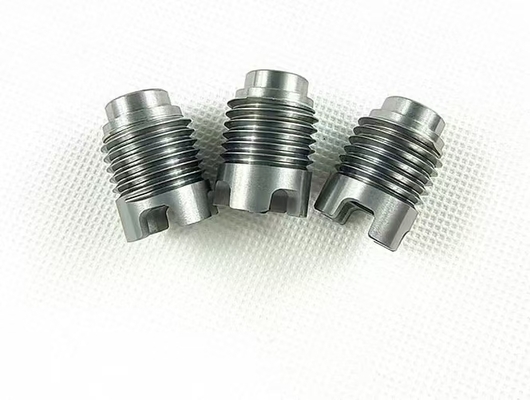

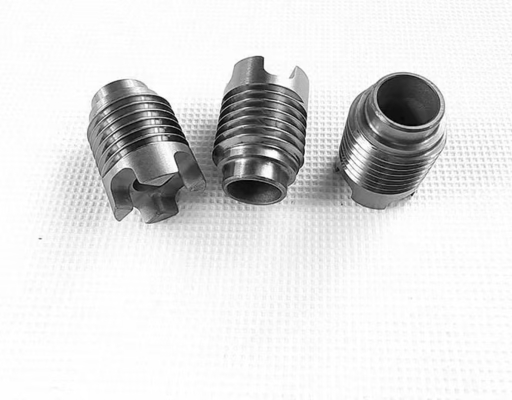

Oil Drilling High Hardness Tungsten Carbide Waterjet Nozzle
Tungsten carbide nozzles are an important tool used in many industries today. The combination of tungsten carbide and cobalt makes the nozzle highly durable and resistant to wear and tear, as well as corrosion. This type of nozzle is also able to withstand extreme temperatures, making it suitable for a variety of industrial applications. Tungsten carbide nozzles are used for the production of oil and gas, the welding of metals, and the application of sealants, adhesives and other liquids. They are also ideal for a variety of industrial applications due to their excellent strength, corrosion resistance and heat resistance.
Materials and Properties
| Grade | ISO Grade | Chemical Composition | Physical Properties | Applications | |||||||
| WC% | CO% | Density g/cm3(±0.1) | Hardness HRA(±0.5) | TRS Mpa(min) | Grain Size(μ m) | ||||||
| YG6 | K20 | 94 | 6 | 14.85-15.00 | 90.5-92 | 1800 | 1.2-1.6 | Carbide burr. | |||
| YG6X | K15 | 94 | 6 | 14.80-15.00 | 91.7-93 | 1600 | ＜1.0 | High wear resistance and higher, strength. Machining of chilled alloy cast irons and refractory alloy steel or finishing of common cast irons. | |||
| YG8 | K30 | 92 | 8 | 14.62-14.82 | 89.5-91 | 1900 | 1.2-1.6 | Wire drawing die and non-standard structure and mechanical component and valve ball. | |||
| YG9 | K40 | 91 | 9 | 14.40-14.60 | 89-90 | 1850 | 1.2-1.6 | Flow sleeves, bushings, rings. | |||
| YG9C | K40 | 91 | 9 | 14.50-14.90 | 87.5-89 | 1815 | 1.2-1.6 | Nozzles, for the petroleum. | |||
| YG11 | K40 | 89 | 11 | 14.35 | 89 | 3200 | 1.6-2.0 | Nozzle, buttons, hemisphere, drilling teeth for the petroleum industry. | |||
| YG11C | - | 89 | 11 | 14.20-14.40 | 87.5-89 | 2200 | 1.6-2.4 | Inserts for mining and high-pressure nozzles in the petroleum, chemical, and mechanic industries. | |||
| YG13 | - | 87 | 13 | 14.10-14.30 | 87.5-89 | 2500 | 1.6-2.0 | Sleeves and bushings. | |||
| YG13C | - | 87 | 13 | 14.05-14.25 | 85.8-87.3 | 2550 | 2.4-4.0 | Alloy teeth and brazing bits. | |||
Product Features
Precision: Our carbide nozzles offer superior precision compared to other materials. This allows for better control and accuracy when performing delicate tasks.
Cost-effectiveness: Our carbide nozzles offer clients cost-effective solutions. This makes our products attractive to businesses that need to maximize their budgets.
Versatility: Our carbide nozzles are designed to be used in a variety of applications, owing to their superior performance and durability.
Corrosion Resistance: Our carbide nozzles are resistant to corrosion and can withstand harsh environmental conditions.
